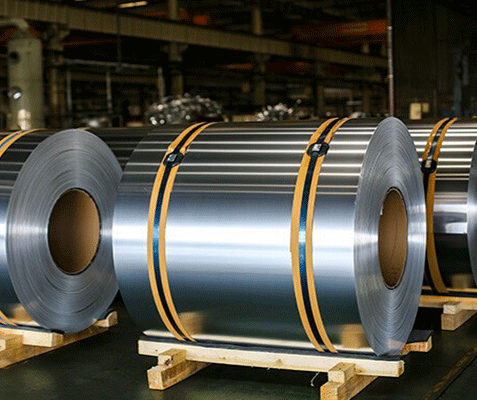

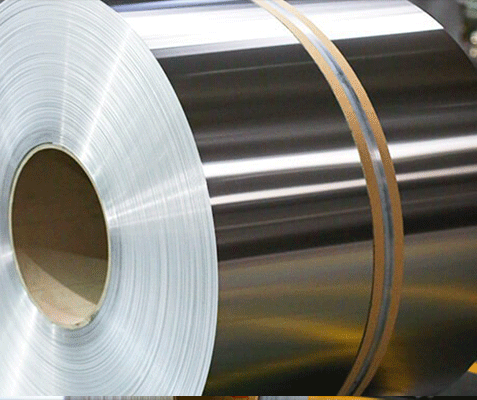

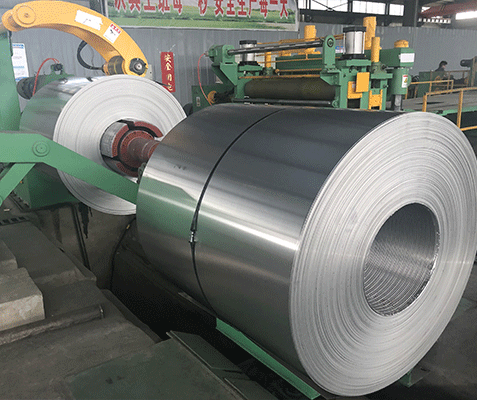

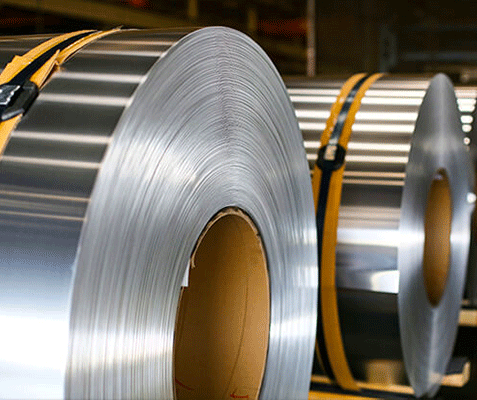

5000 Series Aluminum Sheet & Coil
The 5xxx series aluminum alloy contains 3-5% magnesium, offering excellent corrosion resistance, high strength, and good formability. Common alloys include 5052, 5083, and 5454. It is widely used in marine, automotive, and aerospace industries due to its low density and high energy absorption.
ASTM: B209 (5052, 5083)EN: EN AW-5052, EN AW-5083GB: LF21, LF11
MaterialGB/T 3880 / ASTM B209 / EN 573
Thickness0.15 - 150 mm
Width200 - 1970 mm
Length1000-9000
MOQ1 Ton
Lead Time7-15 days
PortShanghai / Tianjin / Qingdao
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | GB/T 3880 / ASTM B209 / EN 573 | Standard | GB/T 3880 / ASTM B209 / EN 573 |
| Thickness Range | 0.15 - 150 mm | Width Range | 200 - 1970 mm |
| Length Range | 1000-9000 | MOQ | 1 Ton |
| Lead Time | 7-15 days | Port of Shipment | Shanghai / Tianjin / Qingdao |
| Mg | 3.0-5.0% | Mn | 0.5-1.5% |
| Cr | 0.05-0.25% | Zn | ≤0.25% |
| Fe | ≤0.40% | Si | ≤0.25% |
| Cu | ≤0.10% | Ti | ≤0.15% |
| Tensile Strength | 125-350 MPa | Yield Strength | 55-310 MPa |
| Elongation | 10-30% |
